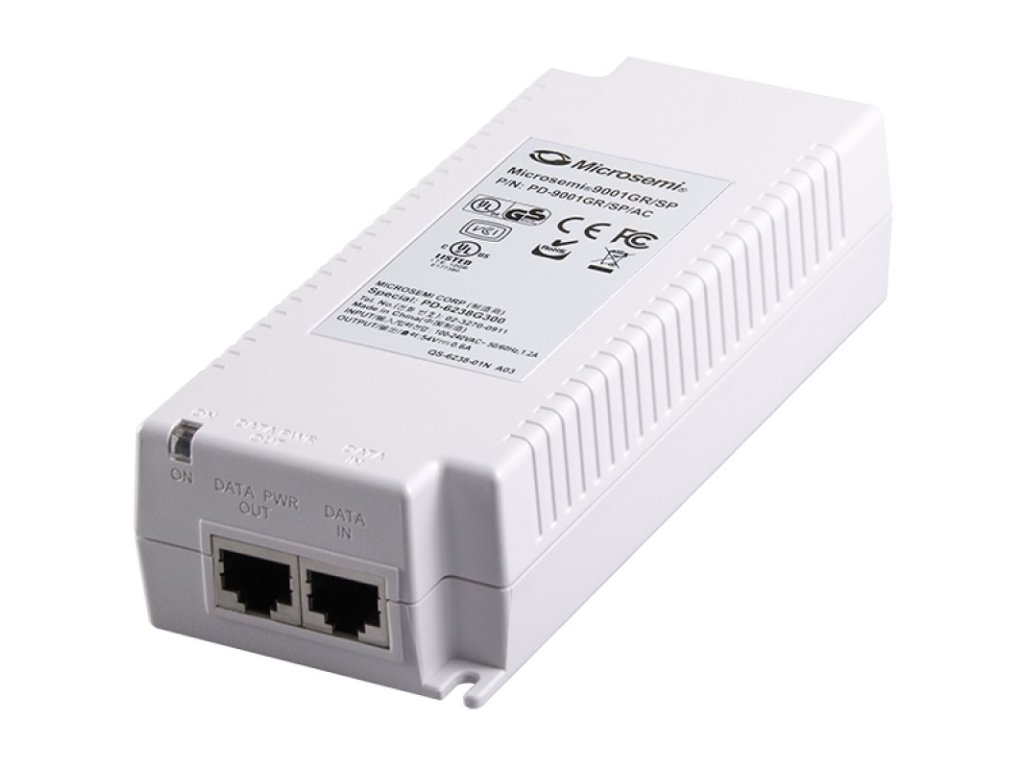

1-Port High-Power, 30W Per Port, 10/100/1000 BaseT Midspan with Lightning Protection

Podrobný popis

Power over Ethernet (PoE) zařízení PowerDsine Single-Port Gigabit PoE, bleskojistková ochrana až 30W přes 2 páry podporuje aplikace 10/100/1000Base-T kompaktní design pro snadnou instalaci s WLAN access pointy Počet portů: 1 Data Rates: 10/100/1000 Mbps Power over Ethernet Output - Pin Assignment and Polarity:4/5 (+), 7/8 (.) - Output Power Voltage: 55 Vdc User Port Power: 30 Watts (Guaranteed) Input Power Requirements: - AC Input Voltage: 100 to 240 Vac - AC Input Current: 0.8 A @ 100-240 Vac - AC Frequency: 50 to 60 Hz Dimensions: 62 mm (W) x 38 mm (H) x 151 mm (L) 2.44 in. x 1.5 in. x 5.94 in Weight 0.75 lbs (340 g) Indicators: - AC Power (Yellow) - Channel Power (Green) Connectors: Shielded RJ-45, EIA 568 A and 568 B Environmental Conditions: - Operating Ambient Temperature: -4° to 104° F (-10 to 50° C) @ 30 W - Operating Humidity: Maximum 90%, Non-condensing - Storage Temperature: -4° to 158° F (-20° to 70° C) - Storage Humidity: Maximum 95%, Non-condensing Reliability: MTBF: 240,000 hrs. @ 25o C Thermal Rating: 25 BTU/Hr (@ 240 VAC) Warranty 1-year Regulatory Compliance: IEEE 802.3at (PoE), RoHS Compliant, WEEE Compliant, CE Electromagnetic Emission & Immunity: FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI Surge Protection: EN 61000-4-5 (10/700 ƒĘsec, 4 KV) Meets Surge Protection as specified in: IEC-61643-21 GR-1089-CORE lightning protection demands ITU-T K.45 International standard Safety Approvals UL/cUL Per IEC 60950-1 GS Mark Per IEC 60950-1
