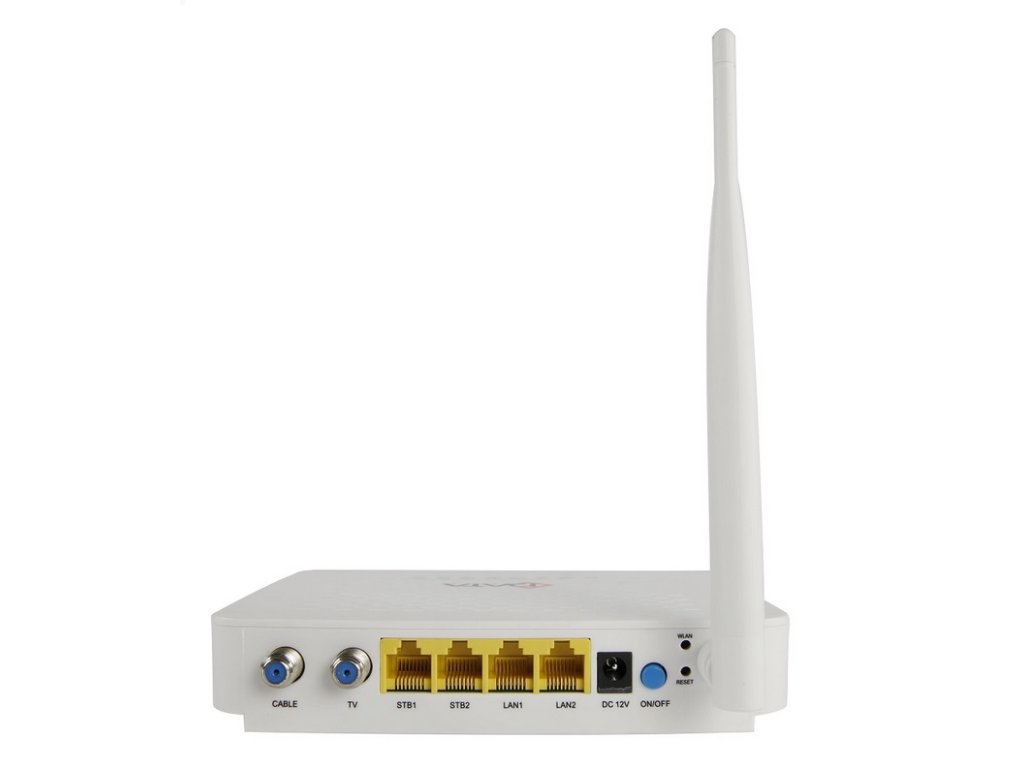

Wodaplug • EOC1121R4WL-R indoor SLAVE • Koaxiální ethernet adaptér 600Mbps, WiFi

Podrobný popis

Jednotka EoC slave s WiFi je určena pro koncové uživatele, kteří ji chtějí využít i jako WiFi router s NAT a nebo Brdige, spolupracuje s EoC master jednotkou na navázání spojení a přenosu sítě Ethernet přes koaxiální rozvod. Z mixed signálu opět převede data na výstup Ethernet+WiFI a signál TV na výstup TV. Vlastní IP adresa. Description Wodaplug EoC product is focused on the use of existing cable television (CATV) infrastructure for Internet access or broadband data transmission for the purpose of being compatible with the existing CATV (or sometimes satellite television) broadcast signals simultaneously transmitted on the same cable. EOC1121R4 series are for NGB next generation broadcast network, especially for Cable TV Operators. It is an advanced end equipment to carry out family bandwidth data access. EOC1121R4 is based on P1901 International Standard Protocol and HomePlug AV Protocol, with low-band and support big line-loss, long transmission distance. The built in WiFi based on the single chip AR9331 which integrates an 802.11a 1x1 MAC radio with internal PA and LNA. It supports 802.11n operations up to 300Mbpcs for 40MHz channel respectively, and IEEE 802.11b/g data rates. Based on REALTEK chipset solution of HomePlug AV and 11n WiFi technology Work at low frequency between 7.5MHz~65MHz without influence on CATV service Physical layer speed is 600Mbps and Max MAC layer throughout is 320Mbps Support data encryption for both uplink and downlink Support 4*10/100Mbps Ethernet ports auto-negotiation function Support slave(CPE) isolation Support VLAN configuration based on slave’s Ethernet ports and 802.1q Support bandwidth(speed) limitation for both uplink and downlink Support QoS configuration based on slave port or VLAN Support broadcast storm control Support data packages count Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on Support WEB,CLI and SNMP management Support on-line upgrading default IP for management : http://192.168.1.1 For the software, there is no difference between the old and new slave. Please read new users guide. The full access and complete setting in Web could be realized via the admin access. The new version wifi slave is more flexible in the application than before. It can controls the STB1 and STB2 ports which used as the Ethernet ports to setting the VLAN, rate-limiting, configuration,etc. The LAN1 and LAN2 have the router feature which support the PPPoE. Moreover, The two mode can work at the same time. Specification Item Specification - Model Number - EOC1121R4WL-R Chipset Reaktek, RTL8198 Protocol EOC standard : HomePlug AV/ IEEE P1901(Draft); Etherent protocol > IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,HTTP, SNMP, TELNET Phisycal Speed 600Mbps Modulation Bandwidth 7.5 MHz~65 MHz Modulation Technology OFDM-2690-carriers,4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO Max. Slave number 256 Encryption mode 128-bit AES encrypted VLAN Support max. 16 VLANs Limitation of port speed Support minimum 64Kbps granularity QoS Support VLAN priority Working mode CSMA/CA Multicast support Support IGMP manage Multicast diagram Management mode Support SNMP, WEB, CLI multi-managed mode Interface Features Ethernet Interface 4*10/100M Ports Coax. Cable Interface 1*Female Connector, IP signal output LED Indication Ethernet Network connection indicator Power Power connection indicator Data Cable connection indicator RF Performance Impedance 75Ohm Transmit Power 0±3dBm Reflection loss >16dB Insertion loss less than 1dB Receiving sensitivity -65dB Electrical Characteristics Power Consumption ?5W Power Supply 12VAC/5A Environment Features Working Temperature 0?~50? Storage Temperature -40?~80? Working Humidity 10%~90%, non-condensation Storage Humidity 5%~90%, non-condensation Environmental standards RoHS Physical characteristics Product Size 160*120*28.5mm Product Weight N.W.: 0.5kg G.W.: 0.52kg WiFi Specification Operating Mode > Router or Bridge Frequency Range : 2,412-2,472GHz Transmitting Speed : 11n [135Mbps]:standard + 802.11b/g standard /auto-negotiation/ Operating channels qty : 13 Spread Spectrum : DSSS, CCK and OFDM Coding BPSK, QPSK, 16QAM and 64QAM RF Power : 802.11b: 16.5±1dBm , 802.11g: 13±1dBm @ 54 Mbps; 14±1dBm @ 48 Mbps; 15±1dBm @ 6 ~ 36 Mbps ; 802.11n: 13±1dBm @ 54 Mbps; 14±1dBm @ 48 Mbps; 15±1dBm @ 6 ~ 36 Mbps antenna : 4dBi (fixed) RF Receiving Sensitivity : 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 65 MbpsHT40; -61dBm @ 135 MbpsHT40 Encryption Mode 802.11i Security: WEP-64/128, TKIP(WPA-PSK) and AES(WPA2-PSK)
