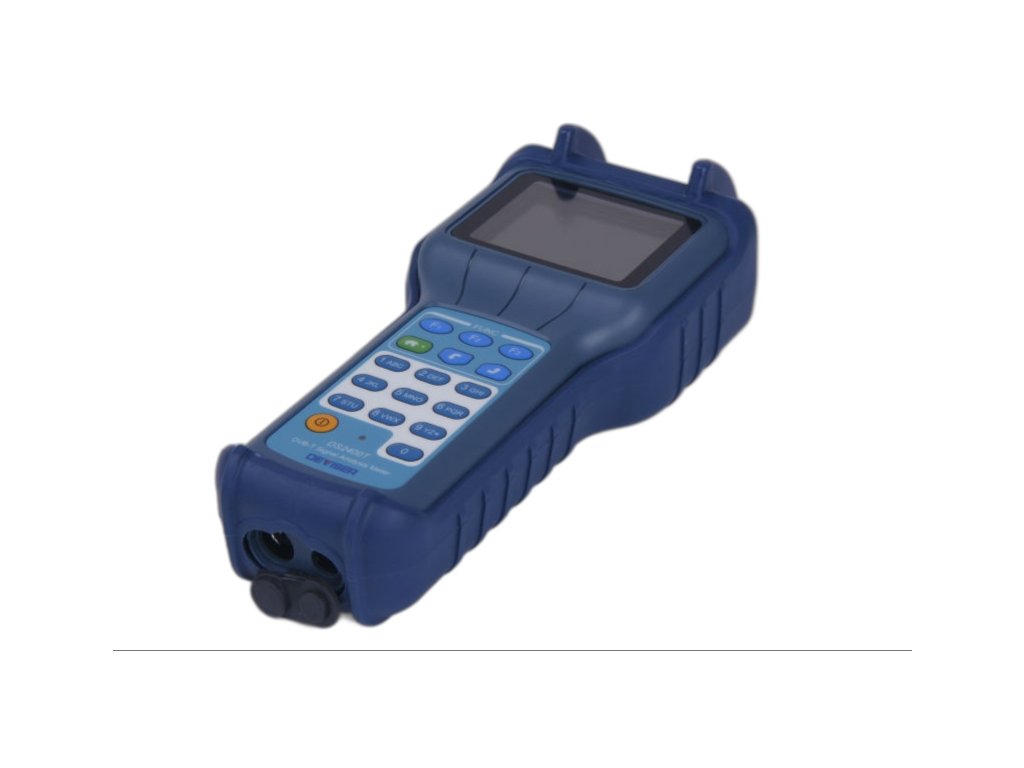

DEVISER DVB-T METER DS2400T
Kód: 470503Podrobný popis
DVB-T METER DS2400T DEVISER
Specifications
DVB-T
Frequency Range 5 ~ 1000 MHz
Function Power, MER, CBER, VBER
MER Versus Carriers
DVB-T Signal
Parameters
Carriers 2 k/8 k (Set by user)
Guard Interval 1/4 1/8 1/16 1/32(Set by user)
Code Rate 1/2 2/3 3/4 5/6 7/8
Modulation QPSK 16QAM 64QAM
Spectral Inversion Automatic
Channel Power
Range 30 ~ 100 dBµV
Accuracy ±2.0 dB
MER
Range ~30 dB
Accuracy ±2.0 dB
BER CBER, VBER
Power Supply
Battery 11.1 V 1.6 AH Lítium Battery(Chargeable)
Charger AC 100 V to 240 V 50-60 Hz
Working Time 5 Hours (Fully Charged)
Charge Time ~ 3 Hours
Others
Serial Port RS 232 C
Operating Temperature 0 ? ~ 50 ?
Dimension 218 mm × 95 mm × 49 mm
Weight 700 g
Display 320 × 240 TFT
http://sapro.cz/ftp/index.php?action=downloadfile&filename=DVB-TT2%20Meter%20DS2400T-Deviser.pdf&directory=SAPRO%20RUZN%C9/DEVISER&
Dodatočné parametre
Kategória: | Sat findery, meracie prístroje |
---|---|
Záruka: | 2 |
